Bimetallic ThermostatB-2, CS-7TA-35

B-2, CS-7TA-35Zoom

One Shot Type Thermostat

In the same size as CS-7, the design is dedicated to one shot. This type is commonly used for prevention of excessive temperature rise in the office automation equipment. Especially, it is featured by excellent thermal response when non-contact type is used.

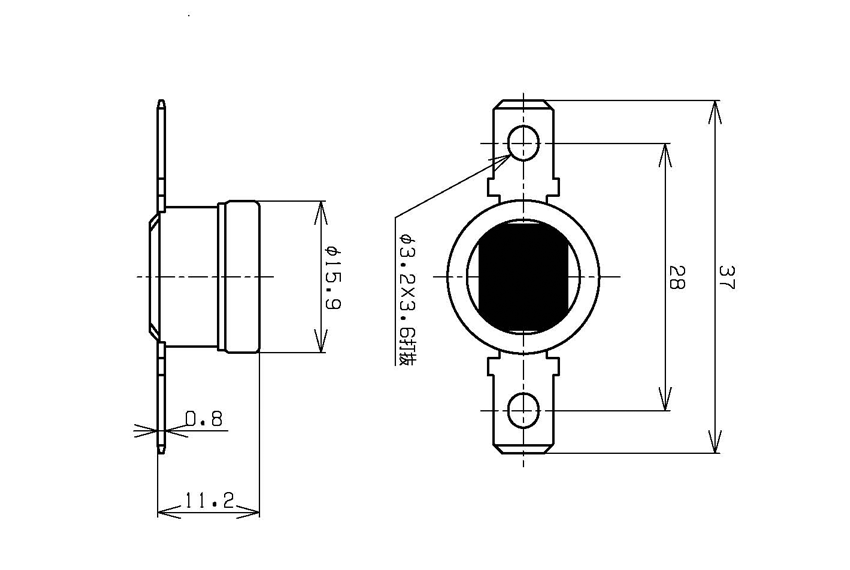

Dimensional Drawing

Dimensional drawingZoom

Approved by:

UL Compliant
(B-2, CS-7TA-35)
CUL
VDE Compliant
(B-2)
JET Compliant
(B-2)
CSA Compliant
(B-2)
TUV Compliant
(CS-7TA-35)
SEMKO
SAA
CQC

Applications

Printer
Copier
Clothes dryer
Microwave oven

Feature 1

One shot type thermostat developed on the basis of the CS-7. It can function only once and will no longer be reset after functioned, same as a thermal cut-off.

Feature 2

Operating temperature can be arbitrarily set, in contrary with conventional thermal cut-off that has only limited operating temperature. It is excellent in aging deterioration in high temperature atmosphere compared with conventional thermal cut-off.

Feature 3

Contact type that is used in direct contact with a heat source and Non-contact type that is used with a clearance from a heat source are available with excellent thermal response.

Feature 4

The specifications of the temperature range and the terminals are subject to limitations under the safety standards.

Specifications

Type Single pole - single throw
Rated Current [B-2]
AC125/250V 25A(〜150°C)
AC125/250V 15A(150〜190°C)
Subject to limitations under the safety standards.

[CS-7TA-35]
250V 17A
Resistive load
Operating Temperature Any temperature up to 220°C can be specified.
Subject to limitations under the safety standards.
Temperature Tolerance ±5°C or more
Endurance 1shot
Dielectric Strength AC1,500V 1min
or
AC1,800V 1sec
Insulation Resistance 100MΩ or more(DC 500V)
Circuit Resistance 50mΩ or less
Heat Resistance 180°C
