Bimetallic ThermostatCT-7
Water-proof Thermostat
Thermostat with a water-proof lead for applications at low to medium temperature.It is suitable for use in wet areas and anywhere else likely to build up condensation.Quick thermal sensing equivalent to a general thermostat, enabled by the structure where the heat sensing surface to transfer heat to the bimetals is designed to tightly contact with the heating media.

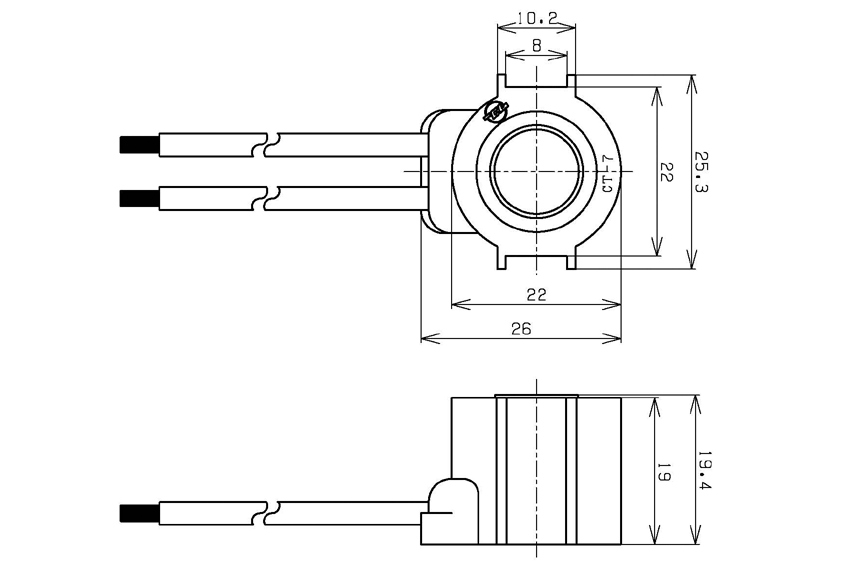

Dimensional Drawing
Approved by:
| UL | Compliant |
|---|---|
| CUL | |
| VDE | Compliant |
| JET | |
| CSA | Compliant |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Commercial freezer-refrigerator
Snow melting machine
Anti-freeze system for outside equipment
Snow melting machine
Anti-freeze system for outside equipment
Feature 1
We will offer the lead in your desired length and type, if necessary.
Feature 2
It can be also used in applications in a frost environment such as an ice maker and a defrost device.
Feature 3
[Microcurrent type]
CT-7L
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | AC125 10A AC250V 5A [Microcurrent type(CT-7L)] AC250V/DC24V or less 200mA or less Resistive load |
| Operating Temperature | -20〜110°C |
| Automatic Reset Temperature | Any value can be specified within the range that satisfies the differential. |
| Differential | 8deg or more Standard 15〜25deg |
| Temperature Tolerance | ±3°C or more(Standard : ±5°C) |
| Endurance | 10,000 cycles or more |
| Dielectric Strength | In water: AC1,500V 1 minute |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 110°C |
