Bimetallic ThermostatCH-152-35
High Temperature, One Shot Type Thermostat
Ceramic casing version of B-2 and CS-7TA-35. It is suitable for use in a high temperature atmosphere, despite its thermal response equivalent to the above-mentioned 2 models.

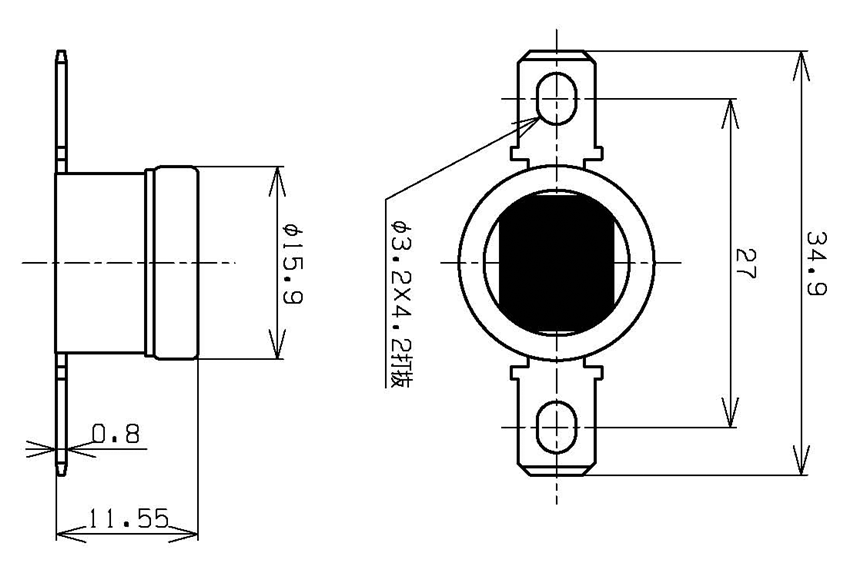

Dimensional Drawing
Approved by:
| UL | Compliant |
|---|---|
| CUL | Compliant |
| VDE | |
| JET | |
| CSA | |
| TUV | Compliant |
| SEMKO | |
| SAA | |
| CQC |
Applications
Copier
Clothes dryer
Feature 1
High temperature, one shot type thermostat developed on the basis of CH-152. It can function only once and will no longer be reset after functioned, same as a thermal cut-off.
Feature 2
Operating temperature can be arbitrarily set, in contrary with conventional thermal cut-off that has only limited operating temperature. It is excellent in aging deterioration in high temperature atmosphere compared with conventional thermal cut-off.
Feature 3
It is excellent in the thermal responsiveness, touches directly to the heat source, and there is a noncontact type that gives the contact type, the heat source, and the clearance used and uses it.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | AC125/250V 17A Resistive load |
| Operating Temperature | Any temperature up to 260°C can be specified. |
| Temperature Tolerance | ±5°C or more |
| Endurance | 1shot |
| Dielectric Strength | AC1,800V |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 250°C |
