Bimetallic ThermostatCS-17
High-Current Capacity, Compact Thermostat
Large capacity type in a miniature version (1/2 inch size) with the performance derived from the CS-1.Its smaller size allows it to provide excellent thermal response and be installed in a smaller space, compared to the CS-1.

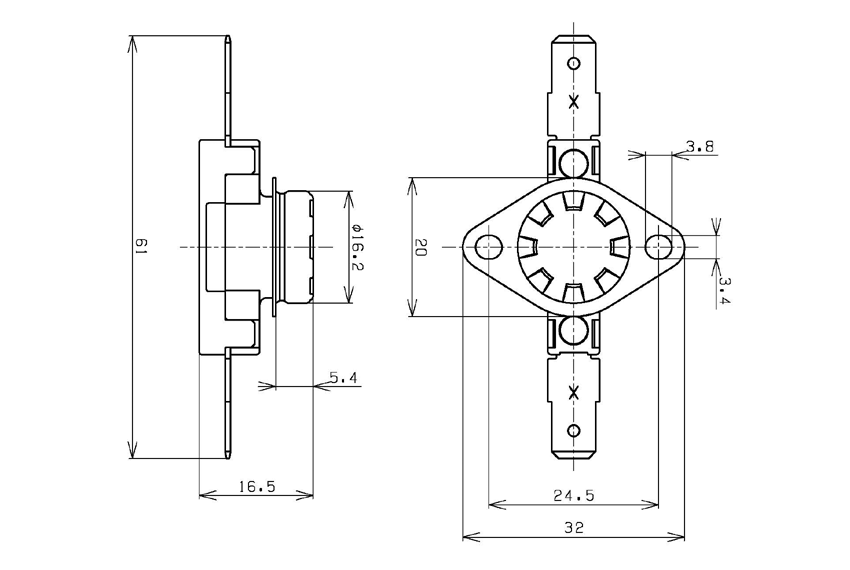

Dimensional Drawing
Approved by:
| UL | Compliant |
|---|---|
| CUL | Compliant |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Clothes dryer
Air conditioner
Air conditioner
Feature 1
For easier replacement of the CS-1 (3/4 inch size), a variety of installation types are available for options.
Feature 2
This is designed to be used at high current, despite its excellent thermal response secured using 1/2 inch bimetals.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | AC125/250V 25A Resistive load |
| Operating Temperature | -20°C〜150°C |
| Automatic Reset Temperature | Any value can be specified within the range that satisfies the differential. |
| Differential | 15deg or more Standard 20〜30deg |
| Temperature Tolerance | ±3°C or more(Standard : ±5°C) |
| Endurance | 10,000 cycles or more |
| Dielectric Strength | AC1,500V 1min or AC1,800V 1sec |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 150°C |
