Bimetallic ThermostatCS-1, CR-1
High-Current Capacity Thermostat
Designed to have larger electric ratings than CS-7. It is designed to be used at up to 35A / 250V AC. It can be used to control large appliances and prevent excessive temperature rise in them.The CR-1 is a high-current capacity, manual reset type that will not automatically reset at room temperature once it has functioned, same as the CR-7.

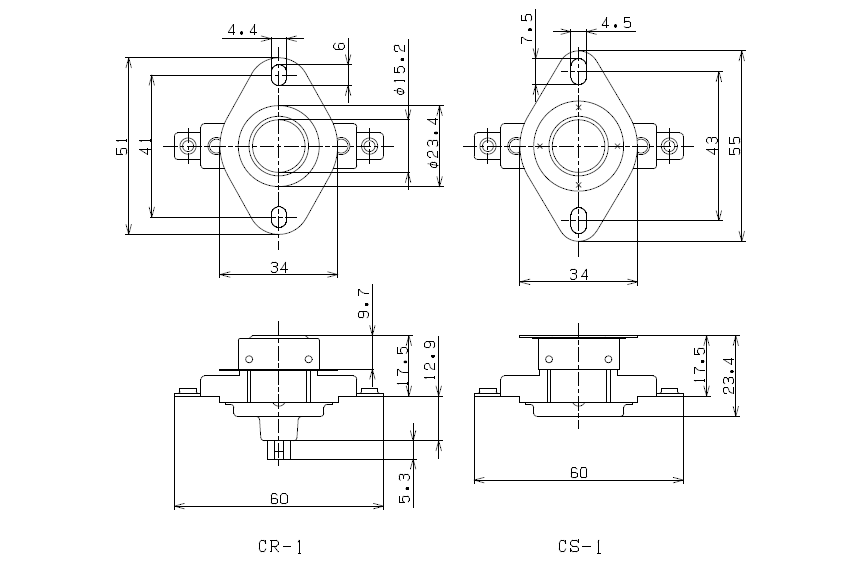

Dimensional Drawing
Approved by:
| UL | Compliant (CS-1,CR-1) |
|---|---|
| CUL | |
| VDE | |
| JET | Compliant (CR-1) |
| CSA | Compliant (CS-1) |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Gas water heater
Electric water heater
Industrial air conditioner
Electric water heater
Industrial air conditioner
Feature 1
M4-screw type and FASTON #250 type are available for connections with the thermostat.
Feature 2
This has the largest electric rating as a bimetal disc thermostat.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | AC125/250V 35A Resistive load |
| Operating Temperature | [CS-1] -20〜150°C [CR-1] 60〜150°C |
| Automatic Reset Temperature | [CS-1] Any value can be specified within the range that satisfies the differential. |
| Differential | [CS-1] Minimum 10deg Standard 15〜25deg |
| Temperature Tolerance | ±3°C or more (Standard : ±5°C) |
| Endurance | [CS-1] : 10,000 cycles or more [CR-1] : 1,000 cycles or more |
| Dielectric Strength | AC1,500V 1min or AC1,800V 1sec |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 150°C |
