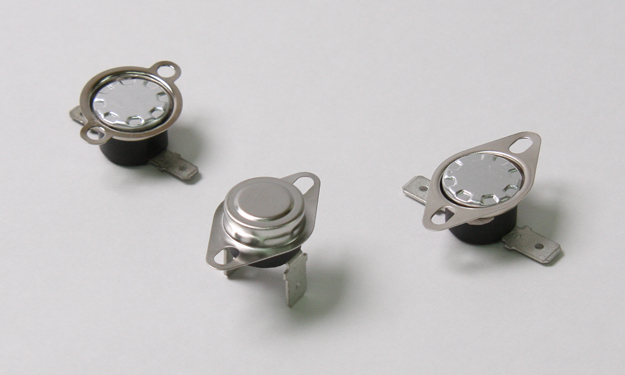

Bimetallic ThermostatCS-7
Compact High Capacity Thermostat
The most versatile thermostats. A wide range of temperature can be set: low temperature to high temperature. It is designed to be used at current from microcurrent to high-current, with a variety of lineups.

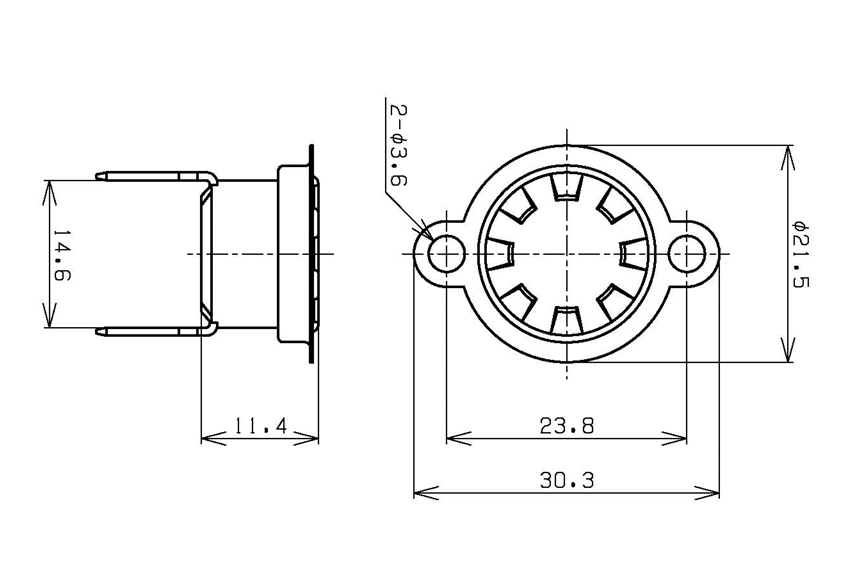

Dimensional Drawing
Approved by:
| UL | Compliant (CS‐7SA,CS-7TA) |
|---|---|
| CUL | |
| VDE | Compliant (CS‐7SA,CS-7TA) |
| JET | Compliant (CS‐7SA,CS-7TA) |
| CSA | Compliant (CS‐7SA,CS-7TA) |
| TUV | |
| SEMKO | |
| SAA | |
| CQC | Compliant (CS‐7SA) |
Applications
Humidifier
Toaster oven
Oil fan heater
Air conditioner
Electric warmer pot
Dish washer
Ice maker
Gas grill
Feature 1
A variety of line-ups of terminals, caps, and attachment fittings are available. The best specifications can be chosen by combining options that meet your needs.
Feature 2
With regard to current rating, standard type, microcurrent type, and high-current type are available.
[Microcurrent type] CS-7L
[High-current type] CS-7SC
Feature 3
With regard to operating temperature, standard type (MAX150°C) and high temperature type (MAX220°C) are available.
[High temperature type] CS-7ＴA
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | [Standard type] AC125V 15A DC12V 10A AC250V 7.5A DC24V 5A [High-current type(CS-7SC)] AC125V 20A AC250V 10A [Microcurrent type(CS-7L)] AC250V/DC24V or less 200mA or less Resistive load |
| Operating Temperature | -20°C〜150°C [High temperature type] -20°C〜220°C |
| Automatic Reset Temperature | Any value can be specified within the range that satisfies the differential. |
| Differential | 8deg or more Standard 15〜25deg |
| Temperature Tolerance | ±3°C or more(Standard : ±5°C) |
| Endurance | 10,000 cycles or more |
| Dielectric Strength | AC1,500V 1min or AC1,800V 1sec |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 150°C [High temperature type] 180°C |
