Bimetallic ThermostatCWK-4PB
Compact Water-proof Thermostat
This thermostat is designed for protection of automotive air conditioner compressor from overheating.The compact design provides better installation flexibility. Most of compressor manufacturers commonly use it.

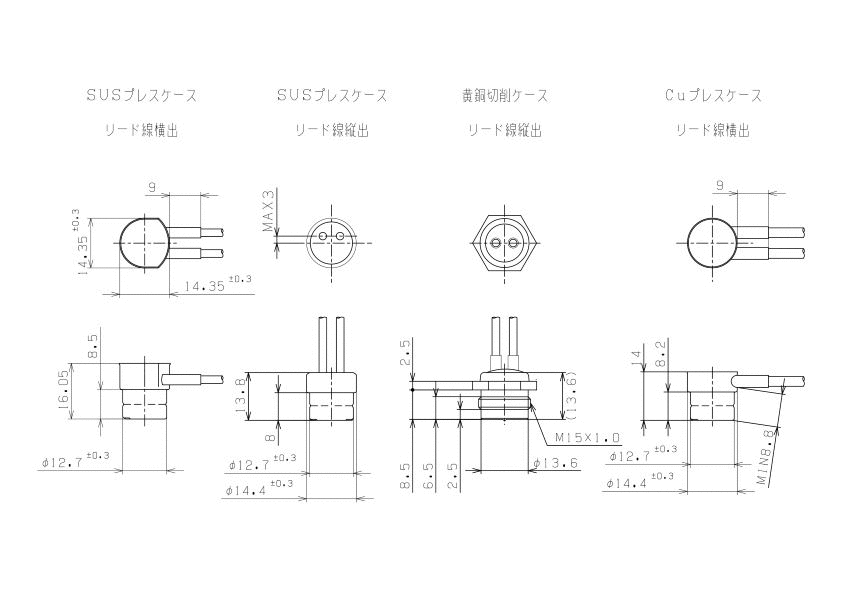

Dimensional Drawing
Approved by:
| UL | |
|---|---|
| CUL | |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Automotive air conditioner compressors
Feature 1
There are two mounting options: a holder mounting type, such as using a stay bar, and a screw-mounting type.
Feature 2
With the lead-wire-pulled-out type adopted, any connector can be setup.
Feature 3
Two types of contact connection are available: Clutch cut-off type and ECM circuit type.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | DC12V 5A |
| Operating Temperature | Any temperature up to 160°C can be specified. |
| Automatic Reset Temperature | Any value can be specified within the range that satisfies the differential. |
| Differential | 15deg or more |
| Temperature Tolerance | OFF temperature : ±4°C or more ON temperature : ±5°C or more |
| Endurance | 10,000 cycles |
| Dielectric Strength | 500V 1min or 600V 1sec |
| Insulation Resistance | 10MΩ or more(DC 500V) |
| Heat Resistance | 160°C |
